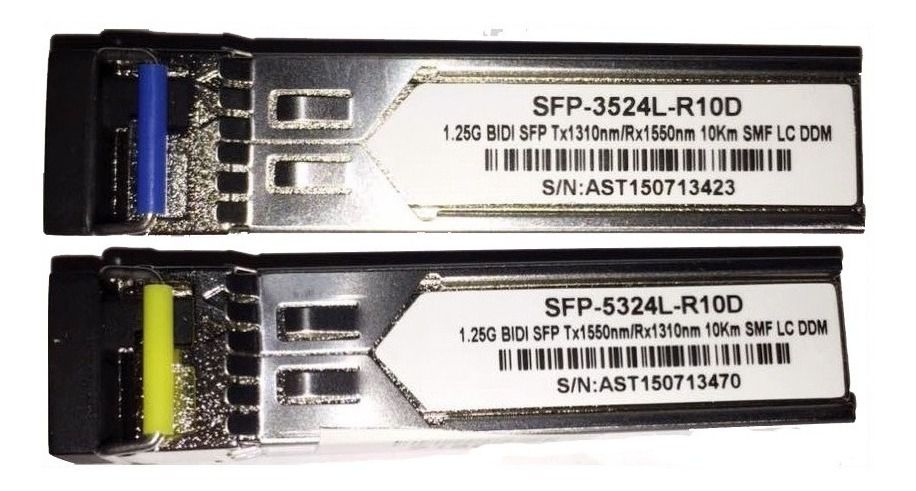

Kit Gbic Módulo Sfp Bi-direcionall Wdm 10km Lc 1550/1310

Código: XUDR7QTNV

~~R$ 318,00~~ R$ 144,00

até 6x de R$ 24,00 sem juros

Qtde: Comprar Estoque: Disponível

Parcelas
- 1x de R$ 144,00 sem juros
- 2x de R$ 72,00 sem juros
- 3x de R$ 48,00 sem juros
- 4x de R$ 36,00 sem juros
- 5x de R$ 28,80 sem juros
- 6x de R$ 24,00 sem juros
- 7x de R$ 24,01
- 8x de R$ 21,01
R$ 144,00
R$ 144,00

AOPB-3524L-R10(D)
1.25Gbps SFP Bi-Directional Transceiver, 10km Reach
1310nm RX / 1550 nm TX

Features
* Dual data-rate of 1.25Gbps/1.063Gbps operation
* 1550nm FP laser and PIN photodetector for 10km transmission
* Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
* Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
* Compatible with SONET OC-24-LR-1
* Compatible with RoHS
* +3.3V single power supply
* Operating case temperature:
Standard : 0 to +70°C

Applications
* Gigabit Ethernet
* Fiber Channel
* Switch to Switch interface
* Switched backplane applications
* Router/Server interface
* Other optical transmission systems

Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
